With the help of our
professionals, we have been able to offer our clients a qualitative
range of Fenaflex Tyre Couplings. The offered couplings are efficiently
manufactured by our vendors' professionals using premium quality raw
material and advanced technology. Moreover, our clients can avail these
couplings from us in various sizes and dimensions at a very reasonable
rate within the promised time frame.
FEATURES :
 Rust proof
Salient Features Set Free
Low Stretch
More Power
High Heat Resistance
Anti Static width="7" height="7" alt="CAW2WIWW" /> Precisely
designed
Salient Features Set Free
Low Stretch
More Power
High Heat Resistance
Anti Staticwidth="7" height="7" alt="CAW2WIWW" /> Sturdy
construction
SPECIFICATIONS :

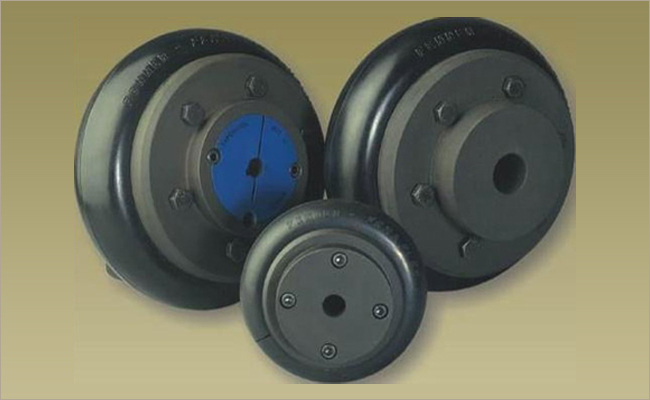

Fenner Tyre
couplings provide all the desirable features of an ideal flexible
coupling, including Taper Lock fixing
The Fenner
Tyre coupling is a "torsional elastic" coupling offering versatility
to designers and engineers with a choice of flange combinations
to suit most applications.
The flanges
are available in either F or H version Taper Lock fitting or bored
to size B
With the
addition of a spacer flange, the coupling can be used to accommodate
standard distance between shaft ends and facilitate
pump maintenance.
Fenner Tyre
couplings can accommodate simultaneous maximum misalignment in all
planes without imposing undue loads on adjacent
bearings and the excellent shock-absorbing properties of the
flexible tyre reduce vibrations and torsional oscillations.
Fenner tyres
are available in natural rubber compounds for use in ambient
temperatures between -50 C to +50 C
Neoprene
rubber compounds are available for use in adverse operating
conditions e.g. oil or grease contamination and can be
used in temperatures of - 15O to + 70 C
F.R.A.S.
tyres are available for use when fire-resistance and antistatic
(F.R.A.S.) properties are required
The range
includes couplings with torque capacity upto 12606 Nm. and bore
diameters upto 190 mm
MISALIGNMENT
Handles parallel, angular and axial displacements, either singly or
in any combination
They can
accommodate parallel misalignment upto 6 mm, angular misalignment
upto 4O and end float upto 8 mm |
